Project Profile

Volvo 240 B230 Turbo

The Story

Background

The client had a long-standing vision for a high-performance Volvo 240 and actually owned two cars to choose from. We initially planned to build his first car, but once it went in for bodywork assessment, the reality set in. The shell was too far gone to be worth saving.

The Pivot

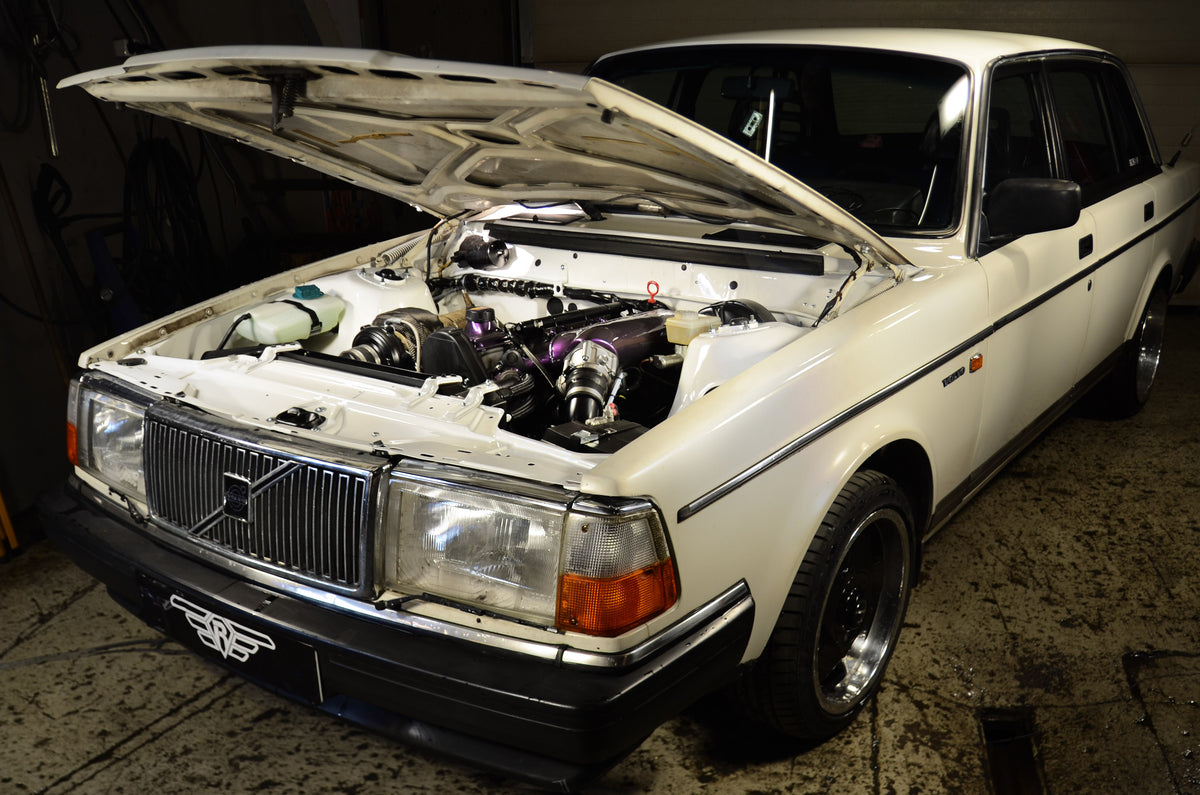

Refusing to abandon the project, the focus was shifted to his second Volvo 240. While the exterior bodywork is scheduled for a future stage, we went "all in" on the engine bay. We stripped, smoothed, and repainted the engine bay to create a pristine home for the new upgraded powerplant.

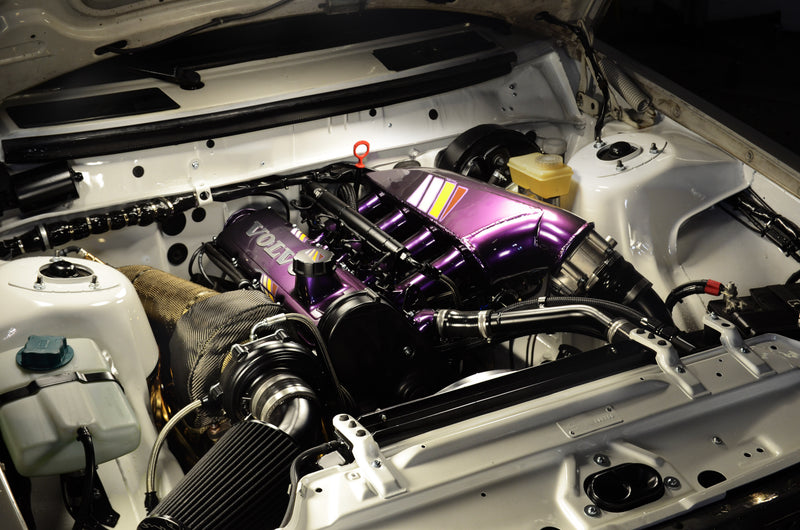

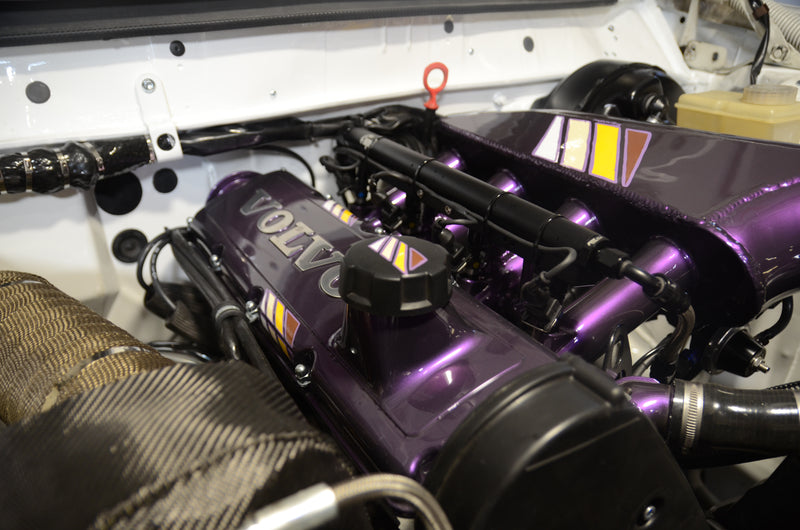

The heart of the build is a fully built B230 Redblock. Engine was totally rebuilt - block bored and honed, installed forged internals, and ported the head to handle significant boost. To ensure the finish matched the performance, we applied custom paint to the engine parts and fabricated a custom crankcase ventilation and intake system, keeping the bay wire-tucked and clean.

The "Turbobrick"

The result is the definition of a street sleeper. It acts as a comfortable old school cruiser for the weekends, but with a built motor and a robust BMW GS6 gearbox swap, it has the torque to light up the rear tires on command.

Build sheet

Engine

  • Bored and honed block
  • Machined surfaces
  • Crankshaft measured and polished
  • Forged rods and Wiseco pistons
  • New OE oil pump
  • Alu damper pulley
  • Steel crankshaft drive gear
  • Added flywheel pin
  • Ported head
  • Larger 46/38mm valves
  • Camshaft T3
  • Upgraded valve springs
  • Alu adjustable cam sprocket
  • Cometic MLS head gasket

Drivetrain

  • Billet flywheel + Sachs SRE 765 Clutch kit
  • BMW GS6-37DZ gearbox
  • Custom driveshaft

Fuel system

  • Custom surge tank
  • Carburettor to EFI fuel system
  • Bosch 200 fuel pump
  • Turbosmart FPR
  • Bosch 980cc
  • Billet fuel rail
  • All new fuel lines AN PTFE

Turbo system

  • Turbo Pulsar PSR 5455G 660HP
  • WG Turbosmart 50mm
  • Exhaust manifold Stainless steel custom
  • 3,5" Stainless downpipe
  • Intercooler 600x300 + Custom piping
  • Customised and reinforces KL Racing Intake Plenum

Engine electronics

  • Maxxecu Race
  • New wiring harness with powers, grounds and fuel pump wiring
  • Bosch Electronic throttle body
  • Hella E-pedal
  • VAG Cop with custom ignition wires
  • MAC Boost solenoid
  • Custom cam trigger system
  • Oil pressure + temp
  • Fuel pressure + temp
  • Knock control
  • Dual injector and flex fuel ready

Other

  • Repainted engine bay and parts
  • Custom painted engine parts by Kaido Jõema
  • Custom crank case ventilation system
  • Aluminium Cooling radiator + custom fan shroud
  • Relocated windshield washer system
  • Custom cold air intake
  • Custom Raketibaas shifter
  • New expansion tank and belt covers
Visual Records

(Click image to expand)
