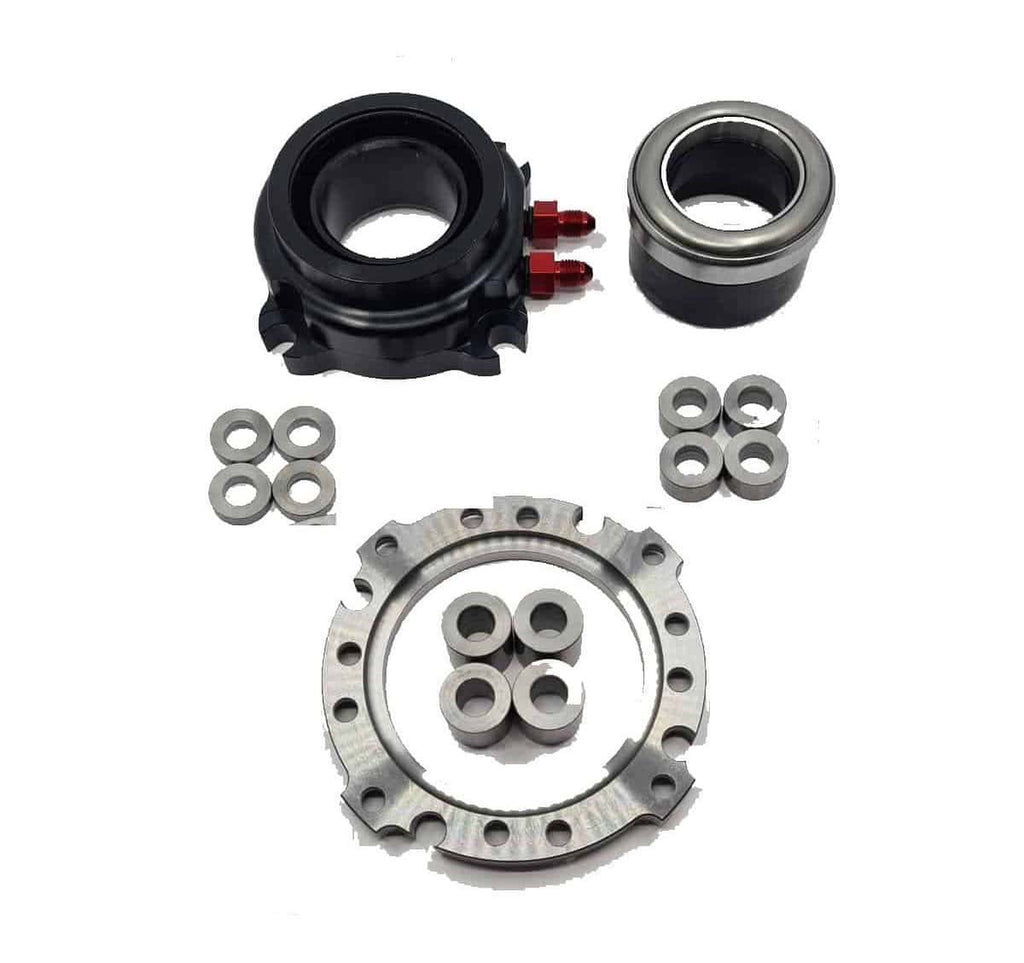

Tenaci hydraulic clutch release bearing kit 215-240 mm Sachs & Tenaci "black" for Toyota / BMW gearboxes

Fits Tenaci, Tilton, ACE Racing, Quartermaster and Sachs clutches.

Bearing depth 65 mm. Adapterplate 10 mm. Spacers 5,15 / 10,15 / 20,15 mm.

(Can be used for ZF-transmission if you remove the socket which the bearing slides on.  )

Make sure that you use the correct clutch cylinder so the release bearing doesn't get overfilled. This could lead to oil leaking on the rubber rings which would wear out the bearing. You could use 0,65" but 0,75" is recommended with pedal-stop. Or OEM-cylinder with pedalstop.

Also make sure that there is at least a 3 mm gap between the pressure plate and the bearing. When the discs wears out the gap is neccesery so that the clutch doesnt burn up.

Film about our bearings:

https://www.instagram.com/p/B-wyzNjFN4h/

https://www.youtube.com/watch?v=fwCHIPZksG8

A positive clutch pedal stop must be used to prevent over-stroking the

hydraulic release bearing piston and the clutch. For access reasons, in many cars

it is not easy to determine how far the master cylinder is being stroked.

The method listed below provides a very effective method for adjusting the

pedal stop:

1. Lift the drive wheels off the ground and support the car on jack stands.

2. With the engine off, place the gearbox in first gear and have someone

attempt to rotate the drive wheels.

3. Depress the clutch pedal slowly until the clutch disengages and the drive

wheels can be rotated.

4. Adjust pedal stop to allow another 1/4" of pedal travel. This should provide

clean release of the clutch. Do not stroke the pedal any further than this

point throughout this procedure, otherwise you will over-stroke the clutch.

It is also recommended to install a bleeder outside of the bellhousing for bleeding out airbubbles.
