ARP

Rod bolt ARP 3/8x1,6" CA625+ ~27g

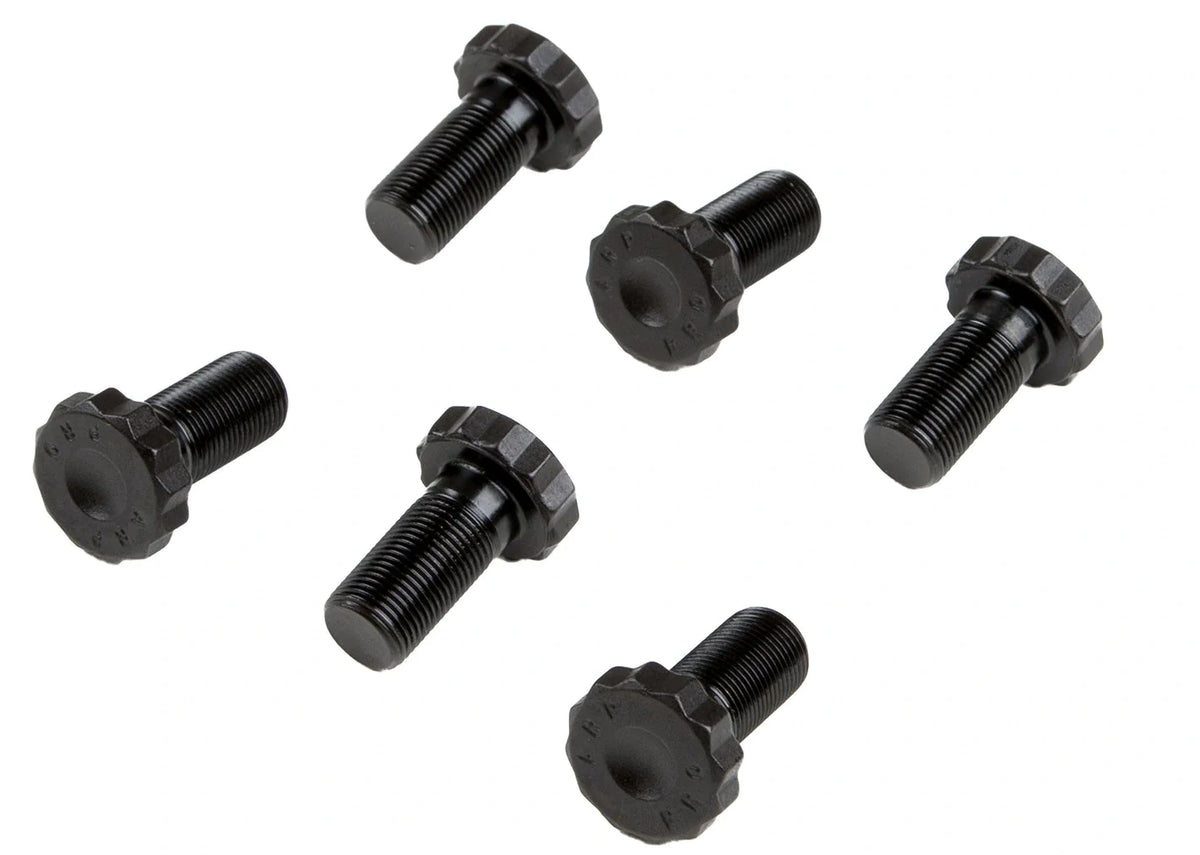

ARP Flywheel bolt Volvo Red block 8 bolts includedMoment: 75nm

ARP Flywheel bolt Volvo White block Set of 10 bolts UHL: 25mm

ARP Flywheel bolts Mercedes M104 / OM604 / OM605 / OM606 Sleeve Size: 5/8 12ptThread: M10x1Length: 25.4mmTightening torque: 70 ft/lbs or 94.9NmAlso Fits: Ford 4.6L & 5.4L Modular V8Number: 8 Assembly instructions

ARP Flywheel bolts Toyota 2JZ / 1JZ Spec: Length: 45mm (without bolt head)Thread: M10x1.25Tightening torque: 73nm Sold in a complete set of 8 pieces.

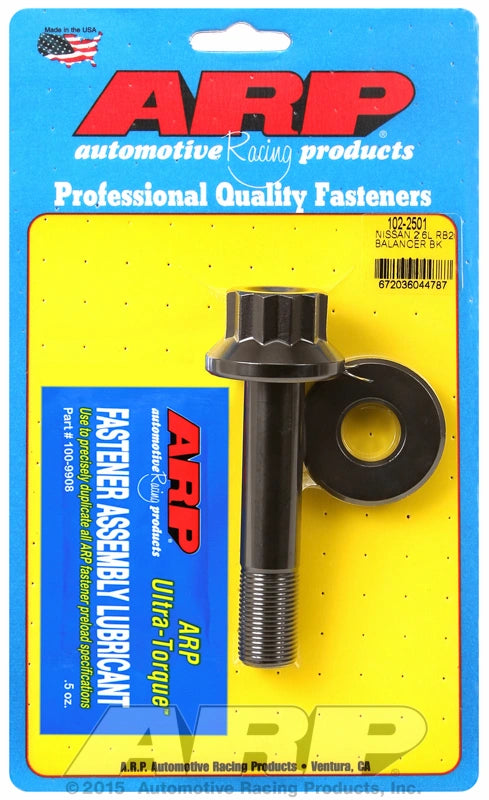

ARP Harmonic balancer Bolt Kit Nissan 2.6L RB26 Socket size: 1-1/16 12ptTightening torque: 325-345 ft/lbs or 440-467.7 Nm Assembly instructions

ARP Head Stud Kit Mercedes M104 Thread: M12x1,75Quantity: 14Torque: 122nmKey grip: 14mm 12pt, 5mm Allen Mounting Instructions

Rod bolt ARP 3/8x1,5" L-19 ~27g

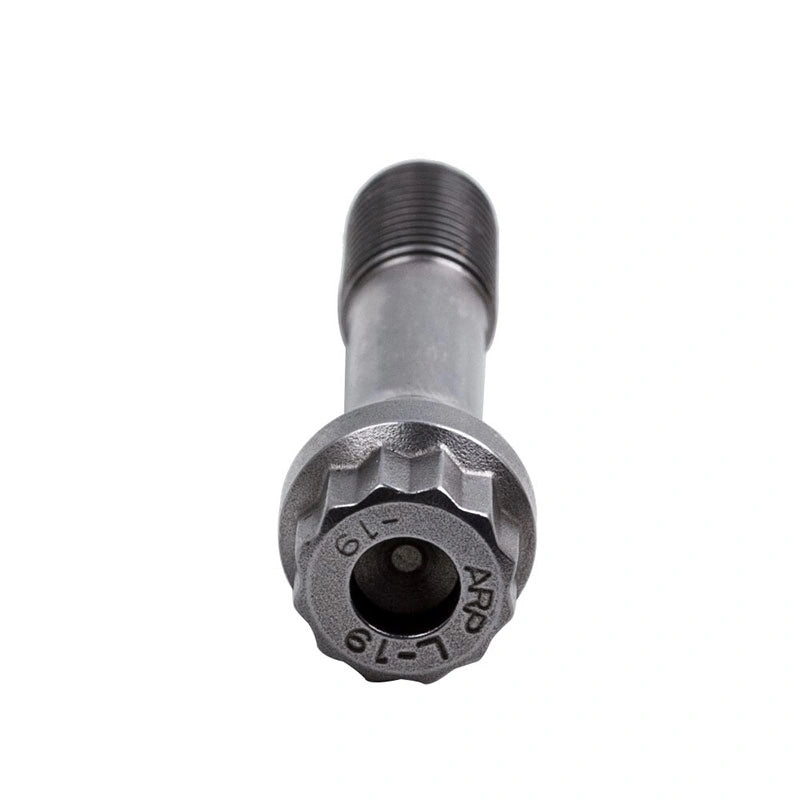

Rod bolt ARP 3/8x1,6" L-19 ~27g

ARP Main Stud Kit VR6 / VR5 - VAG - Audi / VW / Skoda / Seat 2.3L 20V VR5 Toledo / Golf IV / Bora / PassatAQN/AZX 2.8L+2.9L VR6 12V Golf III / Passat / CorradoAAA/ABV 2.8L VR6 24V Golf IVAMV/AQP/AUE/AYL/BDE Socket Size:...

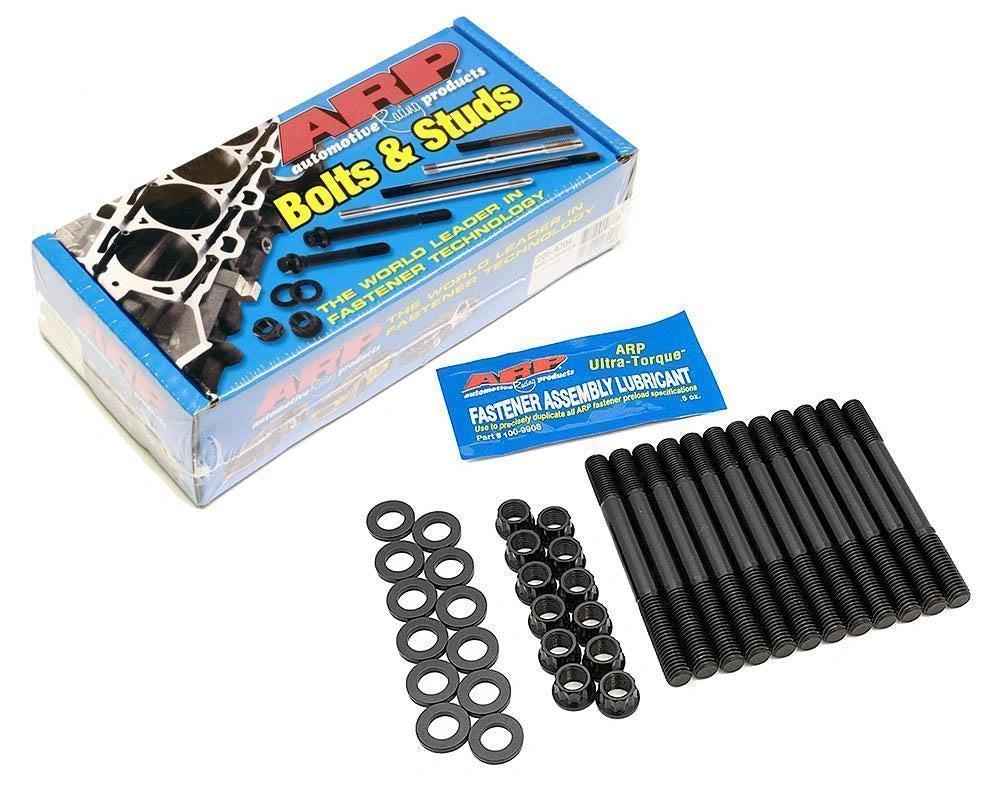

ARP Main Studs Mercedes M104 om606 Amount of studs: 20xAmount of nuts: 20xTotal length: 85mmThread length: 23mm NoteThe bolts have no attachment for the OM606 oil pump.

ARP Main studs Mitsubishi 4G63 Socket Size: 12mm 12pt, 4mm AllenThread: M10x1.25Tightening torque: Tightened in three steps. Step 1: 20 ft/lbs Or 27.1 nmStep 2: 40 ft/lbs Or 54.2 nmStep 3: 60 ft/lbs Or 81.3 nm Assembly instructions

ARP Main studs Opel 2,0 16V Socket Size: 12mm 12pt, 4mm AllenThread: M10x1.5Tightening torque: Tighten in 3 steps Step 1: 20 ft/lbs or 27.1nmStep 2: 40 ft/lbs or 54.2nmStep 3: 60 ft/lbs or 81.3nm Suitable for example:Astra 2005-2006Cobalt 2005-2006Optra 2005-2006Tracker 2005-2006 Total length =...

ARP Main studs Renault Clio 2.0L F4R Socket Size: 12mm 12pt, 4mm AllenThread: M10x1.5Tightening torque: Tighten in 3 steps Step 1: 20 ft/lbs or 27.1nmStep 2: 40 ft/lbs or 54.2nmStep 3: 60 ft/lbs or 81.3nm Assembly instructions

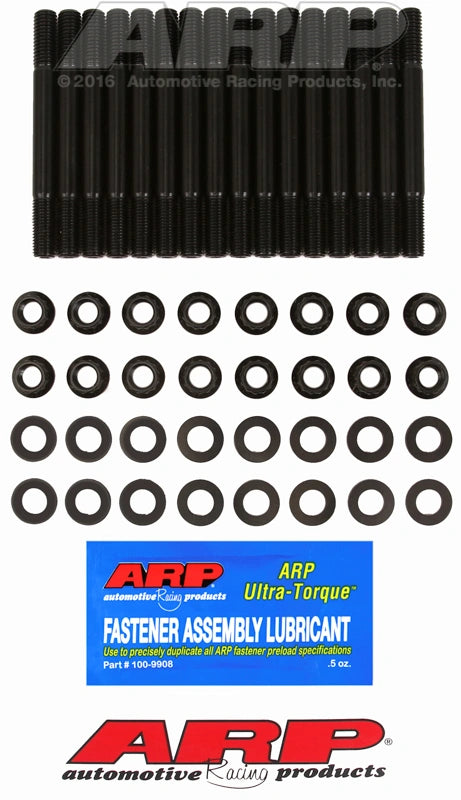

ARP Main studs Vauxhall/Opel 2.5L V6 Socket Size: 12mm 12pt, 4mm AllenThread: M10x1.5Tightening torque: Tighten in 3 steps Step 1: 20 ft/lbs or 27.1nmStep 2: 40 ft/lbs or 54.2nmStep 3: 60 ft/lbs or 81.3nm Assembly instructions

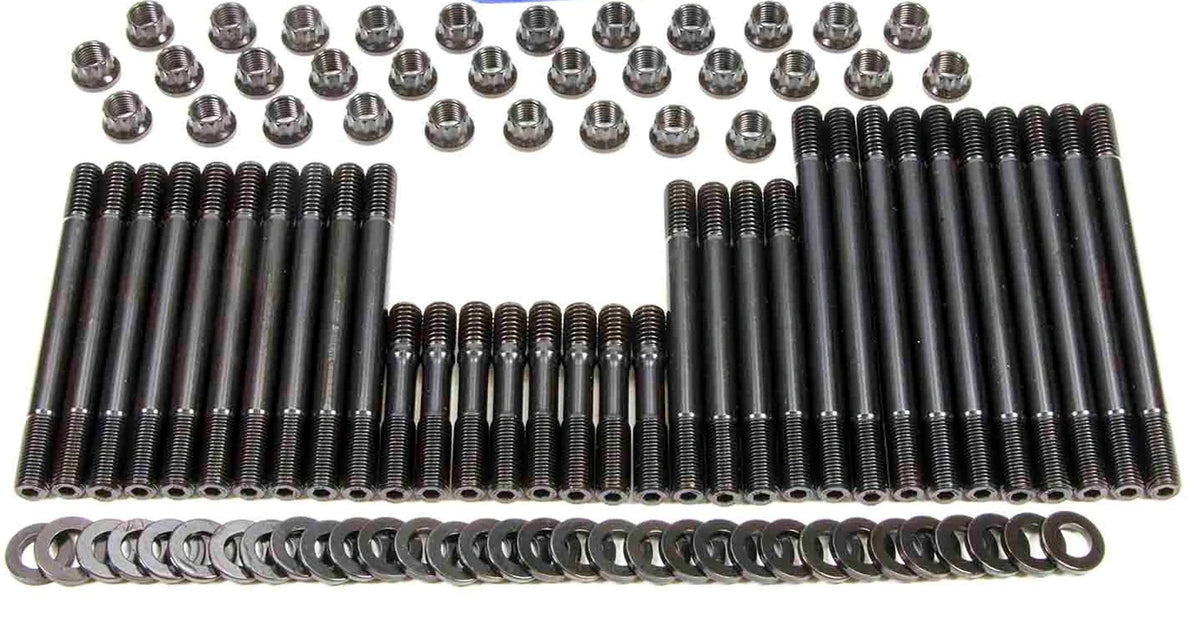

ARP Main studs Volvo (White engine) 2.5L 20V B5254 -99 Socket Size: 16mm 12pt, 10mm 12pt, 9mm 12pt, 4mm Allen, 3mm AllenThread: M10x1.5Tightening torque: See assembly instructions Assembly instructions

ARP Main studs VW/Audi 2.0L (FSI) Socket Size: 16mm 12pt, 4mm AllenThread: M10x1,5Tightening torque: Tightened in 3 steps Step 1: 23.3 ft/lbs or 31.6 nmStep 2: 46.6 ft/lbs or 63.1 nmStep 3: 70 ft/lbs or 94.9 nm Assembly instructions

ARP Flywheel bolts Toyota 2JZ / 1JZ Socket size: 1/2 12ptThread: M10x1.25Length: 26.7mmTightening torque: 70 ft/lbs or 94.9 Nm Assembly instructions

ARP VW 1.6L & 2.0L Golf/Jetta water-cooled Main Stud Kit Socket Size: 12mm 12pt, 4mm AllenThread: M10x1.5Tightening torque: Tighten in 3 steps Step 1: 20 ft/lbs or 27.1nmStep 2: 40 ft/lbs or 54.2nmStep 3: 60 ft/lbs or 81.3nm Assembly instructions

~27g

~27g

ARP2000 rod bolts 7/16x1,6 ~27g

ARP Flywheel bolts Ford 2.0L (YB series) Sleeve Size: 5/8 12ptThread: M10x1.0Length: 29.2mmTightening torque: 70 ft/lbs or 94.9Nm Assembly instructions

ARP Flywheel bolts Ford Zetec 2.0L Sleeve Size: 3/4 12ptThread: M11x1.0Length: 22.9Tightening torque: 85 ft/lbs or 115.2 Nm Assembly instructions

ARP Flywheel bolts Mitsubishi EVO 4G63 Socket Size: 3/4 12ptThread: M12 x 1.25Length: 15.2mmTightening torque: 95 ft/lbs or 128.8Nm Assembly instructions
