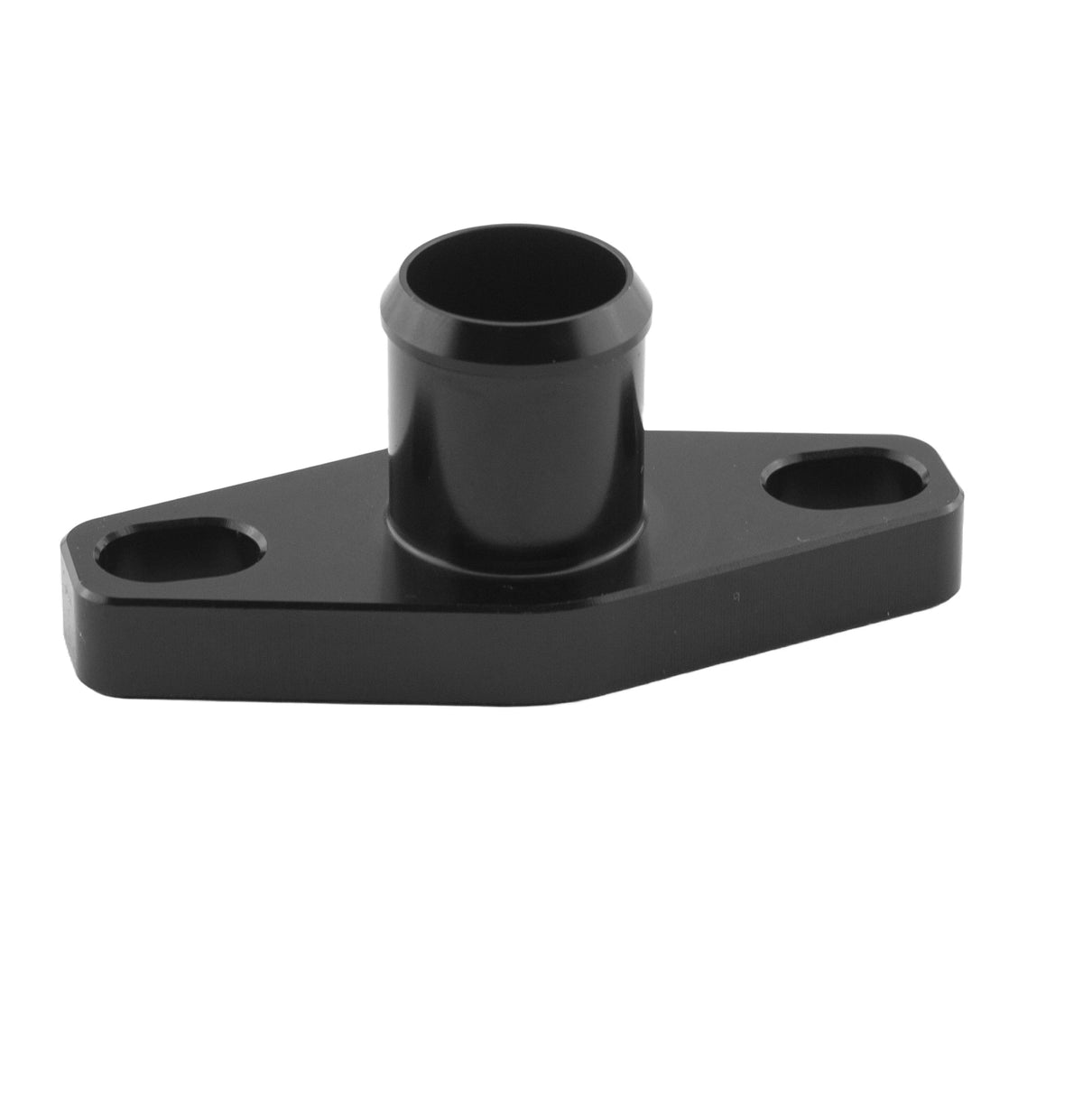

Return flange Barb 51mm CC

Oil drain flange with barb

Dimensioning of this oil return with 16mm internal dimensions is specifically manufactured to be approved as an oil return for a turbo that does not have ball bearings such as e.g. Holset HX30/ HX35 / HX40 or Borg Warner SX-E etc.

Specifications:
External dimension of the hose connection: 19mm
CC measurement bolt hole: 51mm (Hole width 12mm for easier installation)
Inner diameter return connection: 16mm
Internal cone of the return for increased flow
