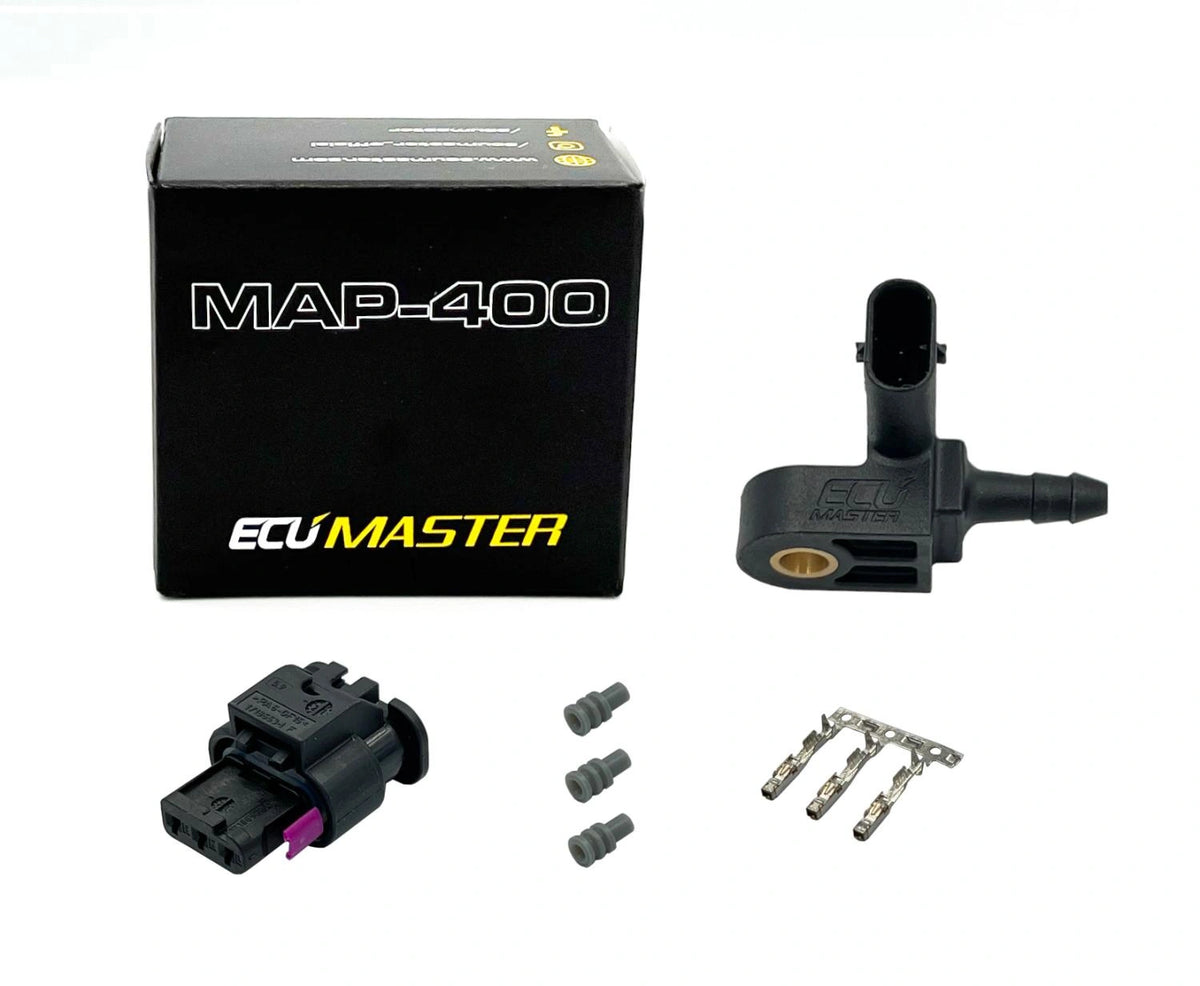

ECUMASTER MAP Sensor MAP-400

The Ecumaster 400kPa MAP (Manifold Absolute Pressure) sensor is a pressure sensor that delivers precise and stable performance at an affordable price. It operates by converting absolute pressure into an electrical voltage signal.
This versatile sensor can accurately measure pressure, from vacuum conditions to "boost pressure" up to 300 kPa, making it an ideal choice for various vehicle applications.

Features:

  • Supply voltage: 5.0 V
  • Supply current: < 10 mA
  • Pressure range: 20 to 400 kPa
  • Full-scale output: 4.6 V
  • Sensitivity: 12.1 mV/kPa
  • Operating temperature: -25 °C to 125 °C
  • Accuracy: +/- 1.5%
  • Enclosure: PA6-GF15 plastic mold
  • IP67
  • Maximum pressure: 1600 kPa (232 psi)
  • Maximum output voltage: 5.5 V
  • Maximum load current: +/- 0.5 mA

    • MAP-400 Datasheet
    Vendor: ECU master
    SKU: ECUM64
    🚚 In partners stock. Can take up to 5-10 work days to be shipped. Contact us for more information.
    $91.00
