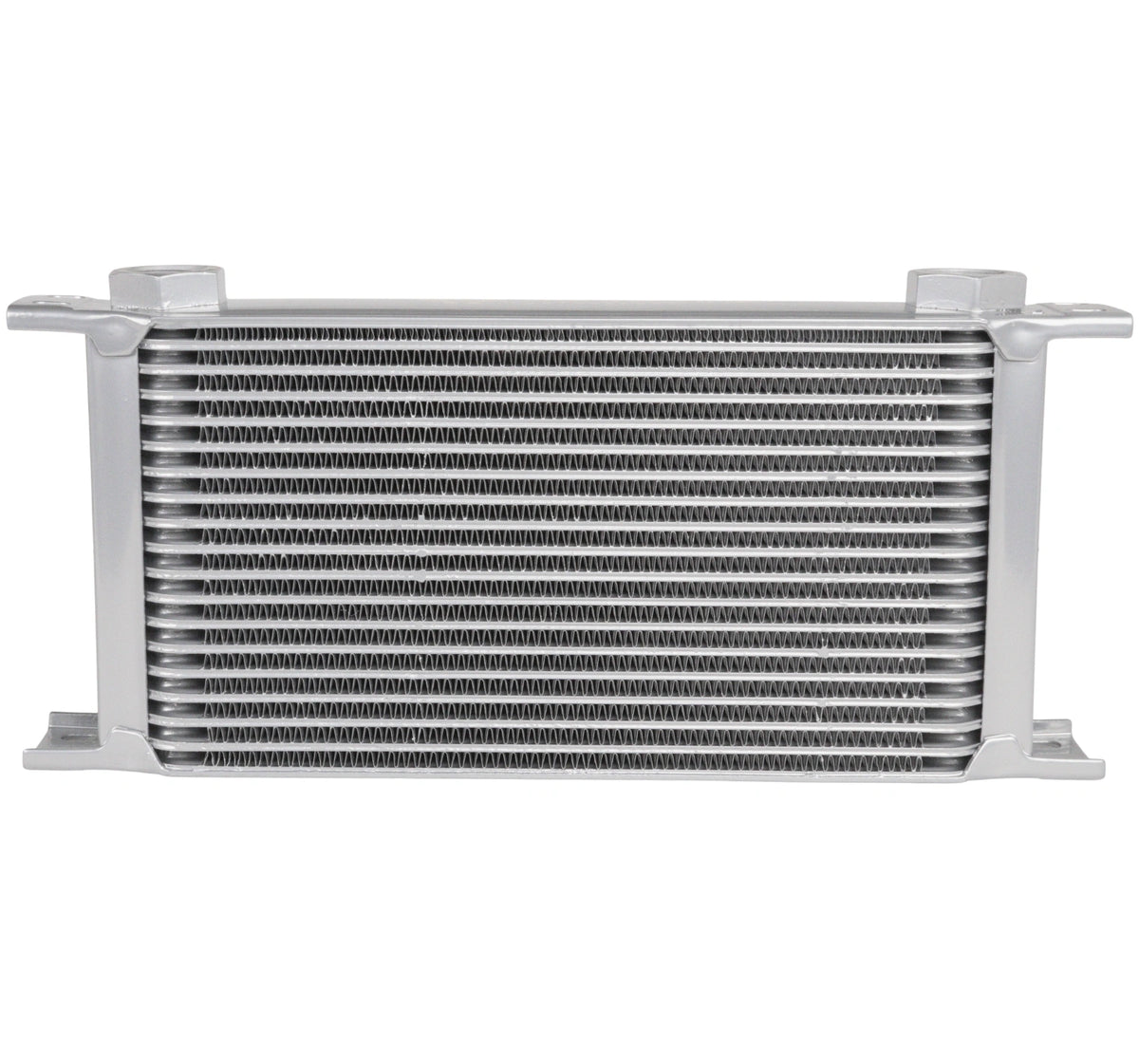

Hurricane Oil cooler Silver 19 rows (330mm)

Hurricane 19-row Oil Cooler 330mm

Universal aluminum oil cooler in Silver from Hurricane Motorsport.

Choice of connections

Select connectors in the dropdown menu. Full Flow with minimal restriction or standard adapters.

Oil cooler suitable for all types of engine oil, differential oil, transmission oil, and other drivetrain oils.

An oil cooler is essential for a tuned engine/drivetrain. With increased power and load or during hard driving, heat builds up, resulting in elevated oil temperature.

Examples include drifting, circuit racing, and rally, where all cars require oil coolers due to high stress and oil temperature.

Oil line size

There is no general answer for hose and fitting size. If you're unsure, AN8 is the most common choice. Factors influencing the setup include:

Ultimately, the goal is to avoid excessive pressure drop between engine/drivetrain inlet and outlet. Measure before and after installation for certainty.

Technical info

Total height: 147mm + fittings
Total width: 330mm incl. mounts
Core width: 283mm incl. end tanks
Center-to-center between fittings: 242mm
Center-to-center between bolt holes: 310mm
Thickness: 51mm
Connection: M22x1.5 internal thread (Female)
Material: 6061 Aluminum (T6061)
Weight: ~1.23kg
Oil capacity: ~0.38 liters
Max working pressure: 10bar
Color: Silver

Each oil cooler is individually pressure tested to guarantee high quality.
