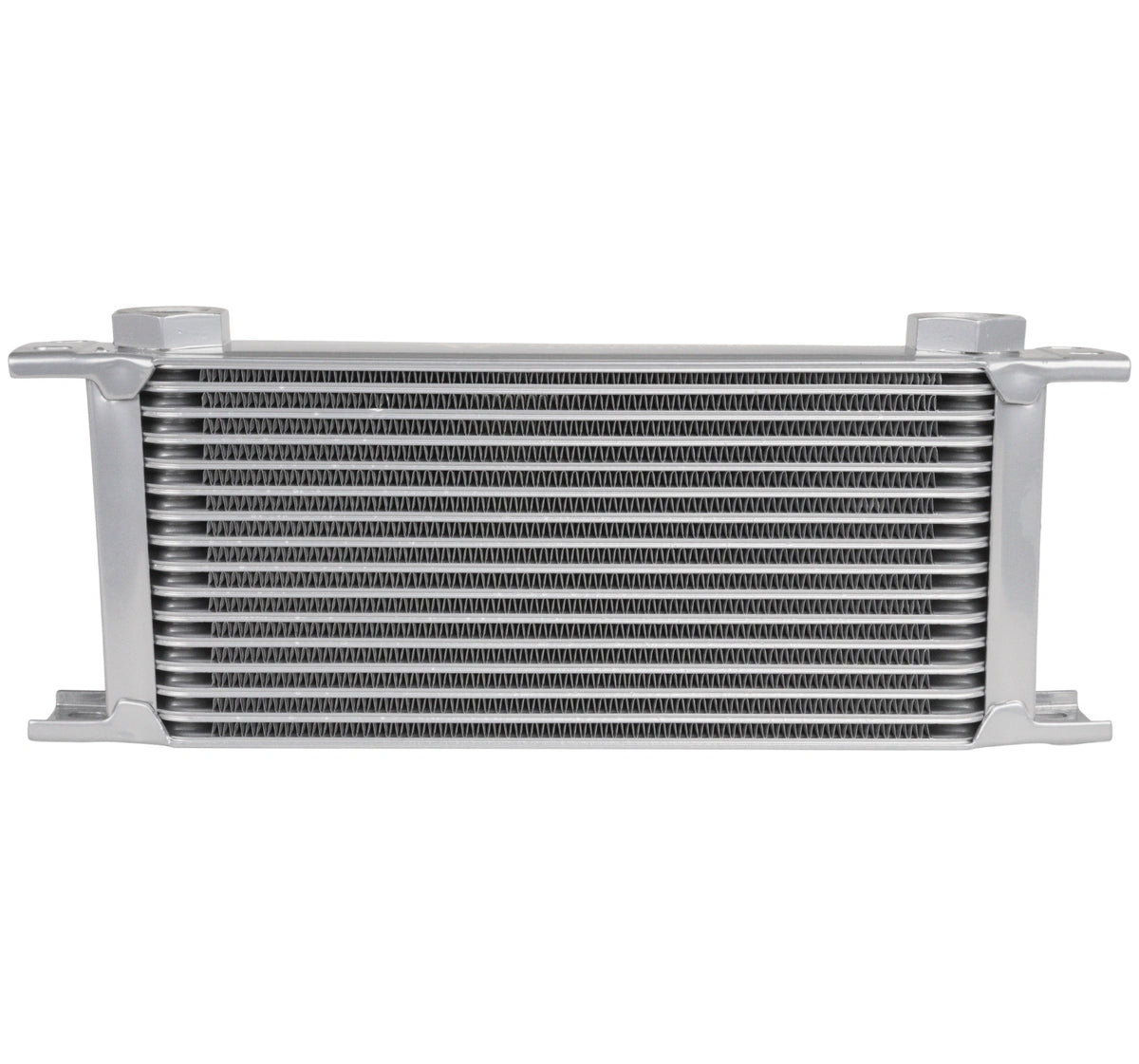

Hurricane Oil cooler Silver 16 rows (330mm)

Hurricane 16-row Oil Cooler 330mm

Universal aluminum oil cooler in Silver from Hurricane Motorsport.

Choice of connections

Select connections from the dropdown menu. Full Flow with minimal restriction or standard adapters.

Oil cooler for all types of engine oil, differential oil, gearbox oil, and other transmission oils.

An oil cooler is essential for a tuned engine/drivetrain. With higher output and load or more aggressive driving, heat generation increases and raises oil temperature.

Examples include drifting, circuit racing, and rally where all vehicles require oil coolers due to high load and oil temperature.

Oil line size

There is no general answer for hose and fitting size. If unsure, start with AN8 which is most common. Factors include parts connected in series with the oil cooler such as:

The goal is to avoid excessive pressure drop between engine/drivetrain inlet and outlet. Measure before and after installation to be sure.

Technical info

Total height: 124mm + fittings
Total width: 330mm incl. mounts
Core width: 283mm incl. end tanks
Center-to-center between fittings: 242mm
Center-to-center between bolt holes: 310mm
Thickness: 51mm
Connection: M22x1.5 internal thread (Female)
Material: 6061 Aluminum (T6061)
Weight: ~1.05kg
Oil volume: ~0.31 liter
Max working pressure: 10bar
Color: Silver

Each oil cooler is individually pressure tested to ensure high quality.
