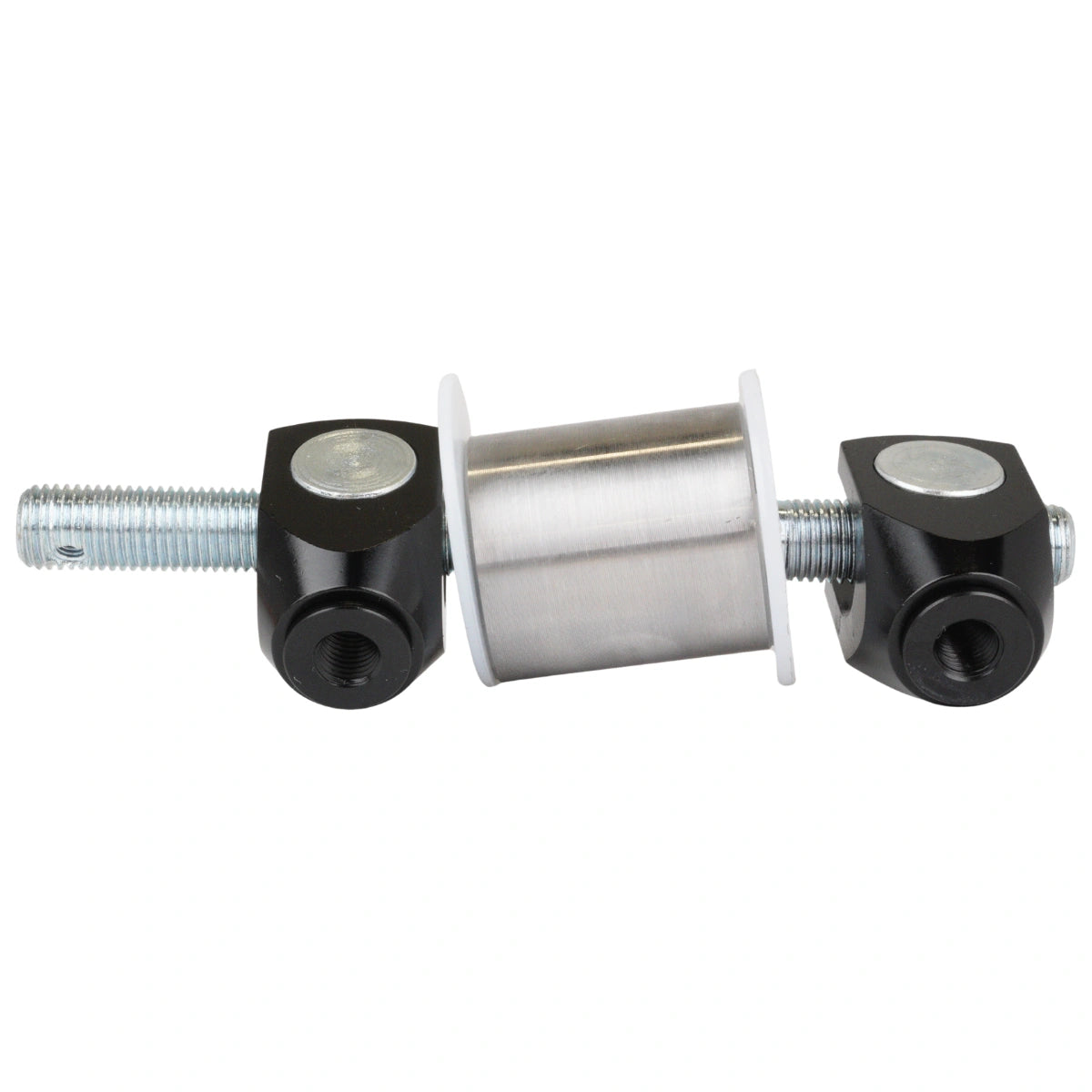

Brake bias bar for pedal box

Brake bias bar for pedal box

Brake balance bar. A weld sleeve is included with this balance bar if you wish to weld it into the original pedal assembly. Common when you only want access to the balance bar function but are satisfied with your original pedal assembly.

This balance bar also fits all pedal assemblies and brake boxes.

The balance bar is delivered with two gold inserts and two black ones, allowing color coding for front and rear.

Plastic washers are also included, mounted between the clevis links and the pedal. These plastic washers prevent the aluminum clevises from wearing against the metal in the pedal.

Specification:

• Thread on balance bar: 7/16 -20
• Thread to brake cylinders: 5/16 -24

Dimensions:

• 32 mm diameter
• 35 mm length
