Sensors

Part no: D 261 205 358-01 Description- Mating connector for electronic throttle, AMP 6-pin SpecificationsApplication and model suitability: Used with Bosch electronic throttle 0 280 750 148, 0 280 750 149, 0 280 750 150, 0 280 750 151, 0 280 750 156, 0...

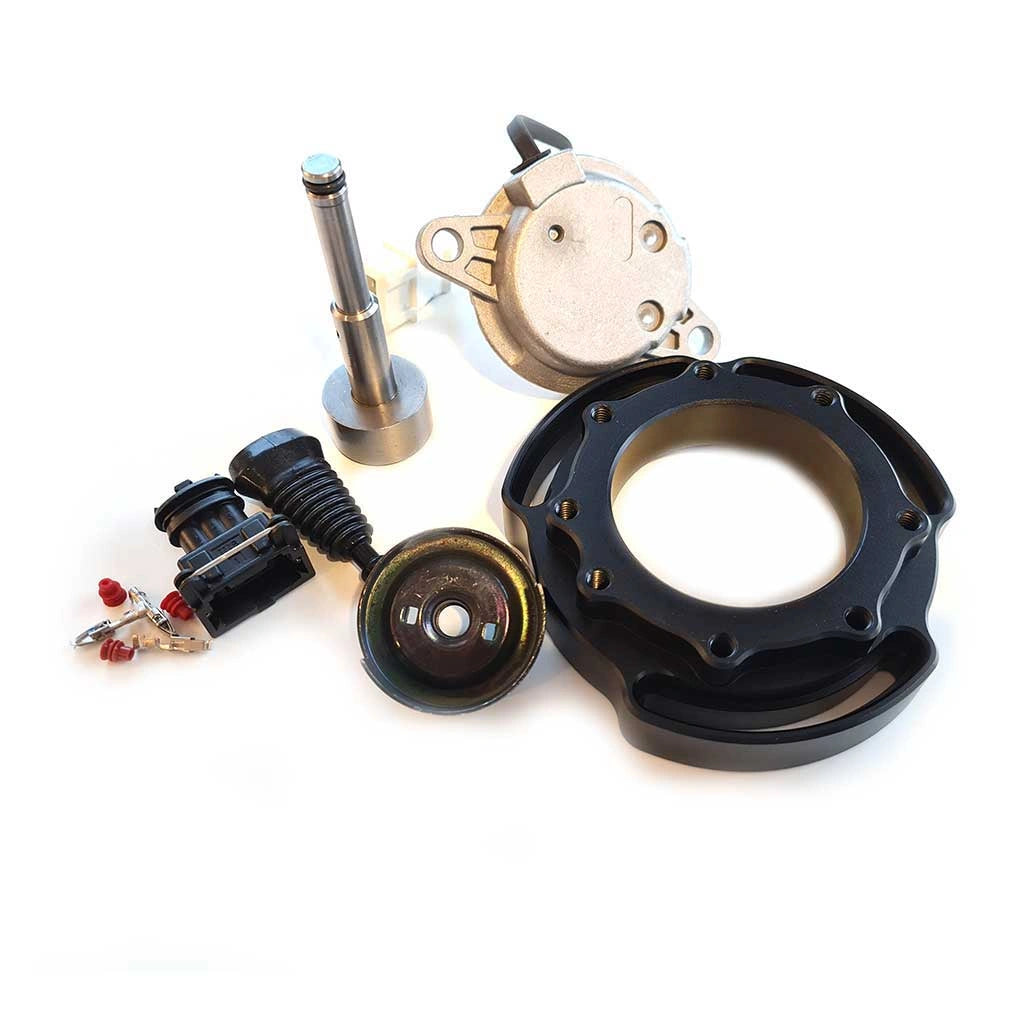

Cam position adapter Volvo B230 Adapter to fit camshaft sensor on camshaft to enable sequential ignition with aftermarket engine management system on Volvo red engine with distributor on camshaft mounted original. Kit contains:1x Camshaft adapter Volvo B230 (HC09094)1x Camshaft sensor 0232101023 (SPDKG850)1x Trigger wheel...

Electronic Throttle Body (82mm bore) Part no: 0 280 750 473 Description- 82mm Bore size- Dual potentiometer redundancy- OE quality and performance-Includes groove on inlet port flange- Use mating connector D 261 205 358-01 SpecificationsApplication and model suitability: - Generic use- Custom applications- Requires...

Trigger wheel 153 / 65mm (60-2) Trigger wheel for which fits aftermarket ECU to get crankshaft signal. These are available in 36-1 or 60-2 resolution which is preset in all aftermarket control systems. Used in conjunction with a Hall or VR sensor connected to...

Trigger wheel 153 / 65mm (36-1) Trigger wheel for which fits aftermarket ECU to get crankshaft signal. These are available in 36-1 or 60-2 resolution which is preset in all aftermarket control systems. Used in conjunction with a Hall or VR sensor connected to...

Trigger wheel 138mm / 30mm (60-2) Trigger wheel for which fits aftermarket ECU to get crankshaft signal. These are available in 36-1 or 60-2 resolution which is preset in all aftermarket control systems. Used in conjunction with a Hall or VR sensor connected to...

Trigger wheel 138mm / 30mm (36-1) Trigger wheel for which fits aftermarket ECU to get crankshaft signal. These are available in 36-1 or 60-2 resolution which is preset in all aftermarket control systems. Used in conjunction with a Hall or VR sensor connected to...

Trigger wheel 100mm / 57mm 36-1 Trigger wheel for which fits aftermarket ECU to get crankshaft signal. These are available in 36-1 or 60-2 resolution which is preset in all aftermarket control systems. Used in conjunction with a Hall or VR sensor connected to...

Trigger wheel 100mm / 57mm (60-2) Trigger wheel for which fits aftermarket ECU to get crankshaft signal. These are available in 36-1 or 60-2 resolution which is preset in all aftermarket control systems. Used in conjunction with a Hall or VR sensor connected to...

Crank trigger VAG 60-2 60-2 trigger mounted instead of rear oil seal and brings a 60-2 trigger from the supplied digital trigger sensor. MaxxECU takes this signal directly without any external electronics.Connectors not included! Fits Audi 5-cyl engine1: +5v2: Signal3: Trigger GND.

Bosch wide band sensor LSU 4.9 (0281 004 191

Temperature sensors. CLT sensor for water / oil temperature. M14x1.5mm thread Calibration table and connection see the image above.

Camposition sensor Volvo 850 Suits the cam position adapter for B230 Hall effect sensor/ camshaft sensor 0232101023 (0 232 101 023) Illustration of the pin-out is avalible in the pictures.

Trigger disc camshaft Volvo 850 Suits the cam position adapter for B230

Cam position adapter Volvo B230 Adapter to fit camshaft sensor on camshaft to enable sequential ignition with aftermarket engine management system on Volvo red engine with distributor on camshaft mounted original. Used with camshaft sensor 0232101023 (0 232 101 023) The adapter is used...

Digital cam position sensor for cam position detection. Pulldown output. Requires pulse resistance (usually built in ECU). Use with steel trigger. 5-24v supply voltage.Including lock nuts for sensor mounting. This also works as a general crank trigger (tested with 60-2 trigger wheels up to...

1/8" NPT pneumatic valve filter

Solenoid valve with twin coil 12VDC. Supplied with connectors and nipples. A: top on wastegateB: bottom on wastegateIN: PressureEX: Filter (OUT)

Measure 0-1250 C (TYPE-K) and send out 0-5v signal. Works with MaxxECU.

Requires 12mm hole in intake / pressure pipe and have a bolt fastening hole. Measures up to 120 degrees. Calibration table and connection see Figure 2.

High quality crankshaft sensor. Inductive. 1: signal2: ground3: shield

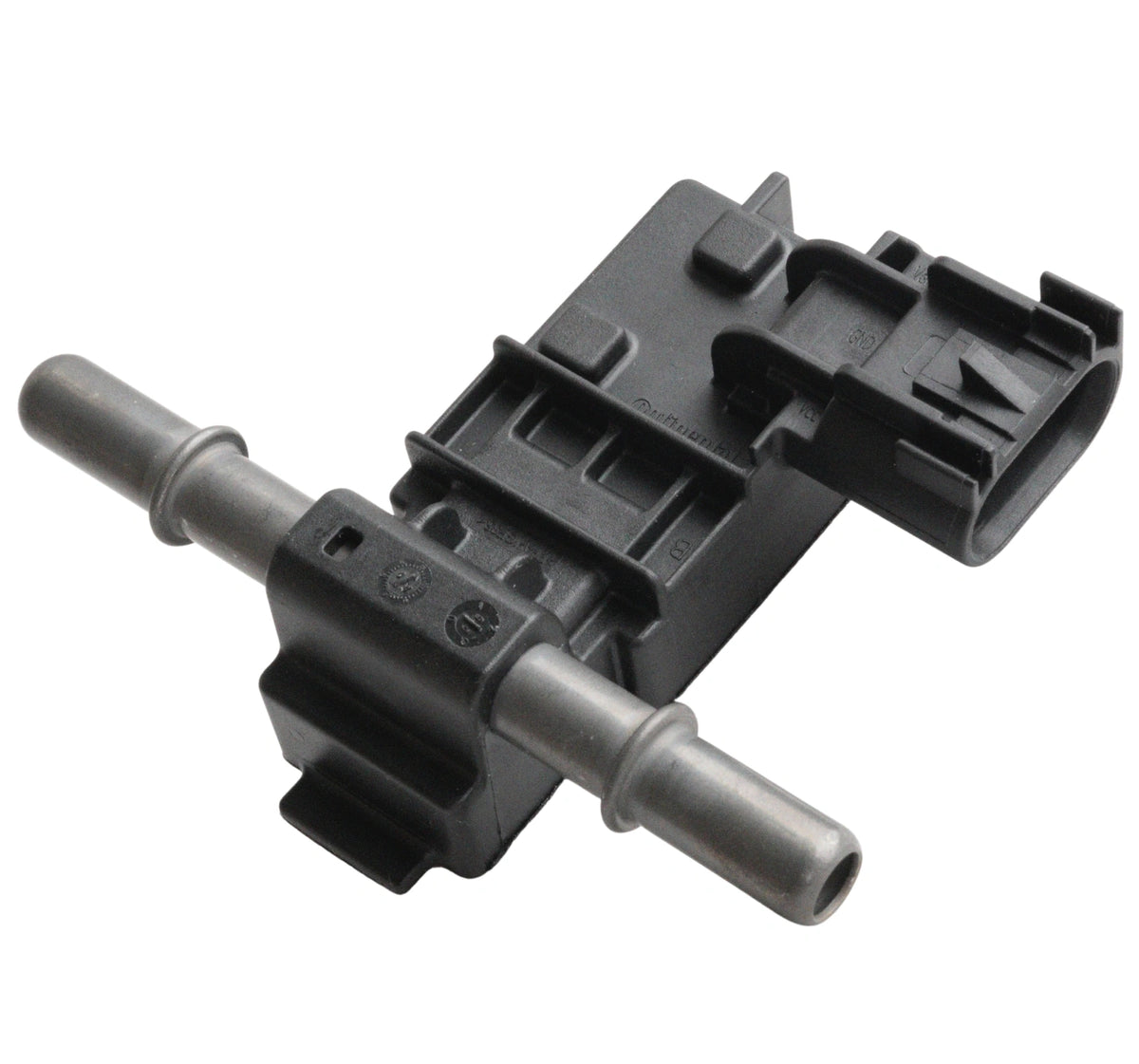

Ethanol fuel sensor mounted in vehicle's return fuel line. +/- 5% accuracy, can handle temperatures between -40 and + 90 degrees C. Max 10bar pressure! AN connectors and connectors are not included, can be purchased separately, AN6 and AN8 are available. MaxxECU has direct...

Pressure sensor measuring up to 700kPa (6bar overpressure). Made for air and oil.1/8" -27 NPT connection. Electrical connector not included.

Intake temperature sensor (IAT) M12X1.5. Very fast sensor because the element itself is open. Read temperatures up to 150 degrees. Supplied without connectors. Calibration table and connection see Figure 2. Ref:Bosch 0 280 130 039

Bosch Wide band sensor LSU 4.2. Used for many after market engine management systems like: Nira i3 / +MaxxECULink / VipecVEMS Bosch partnr:0258007057

MAC boost solenoid This is a very good boost solenoid valve Handle pressure up to 8 BAR Complete with fittings and connectors! The kit contains:1x Fast Response Solenoid1x Mating Connector Assembly1x 1/8" NPT Sintered Muffler2x 1/8" NPT to 3/16" Hose Barb Adapters (Fits 4mm...

Knock sensor Bosch

Sensor for exhaust gas temperature measurement (EGT) with 1.8m cable. 1/8 NPT.

Sensor for exhaust gas temperature measurement (EGT) with 1.8m cable. mini type-k contact. 1/8 NPT.

Sensor for exhaust gas temperature measurement (EGT) with 1.1m cable. 1/8 NPT.

Collet EGT sensor Used with a 4,7mm thick sensor.
